Step 1: Containment Setup

The first step is to set up containment in the garage. This is crucial to keep the work area safe and clean, minimizing dust and debris during the repair process.

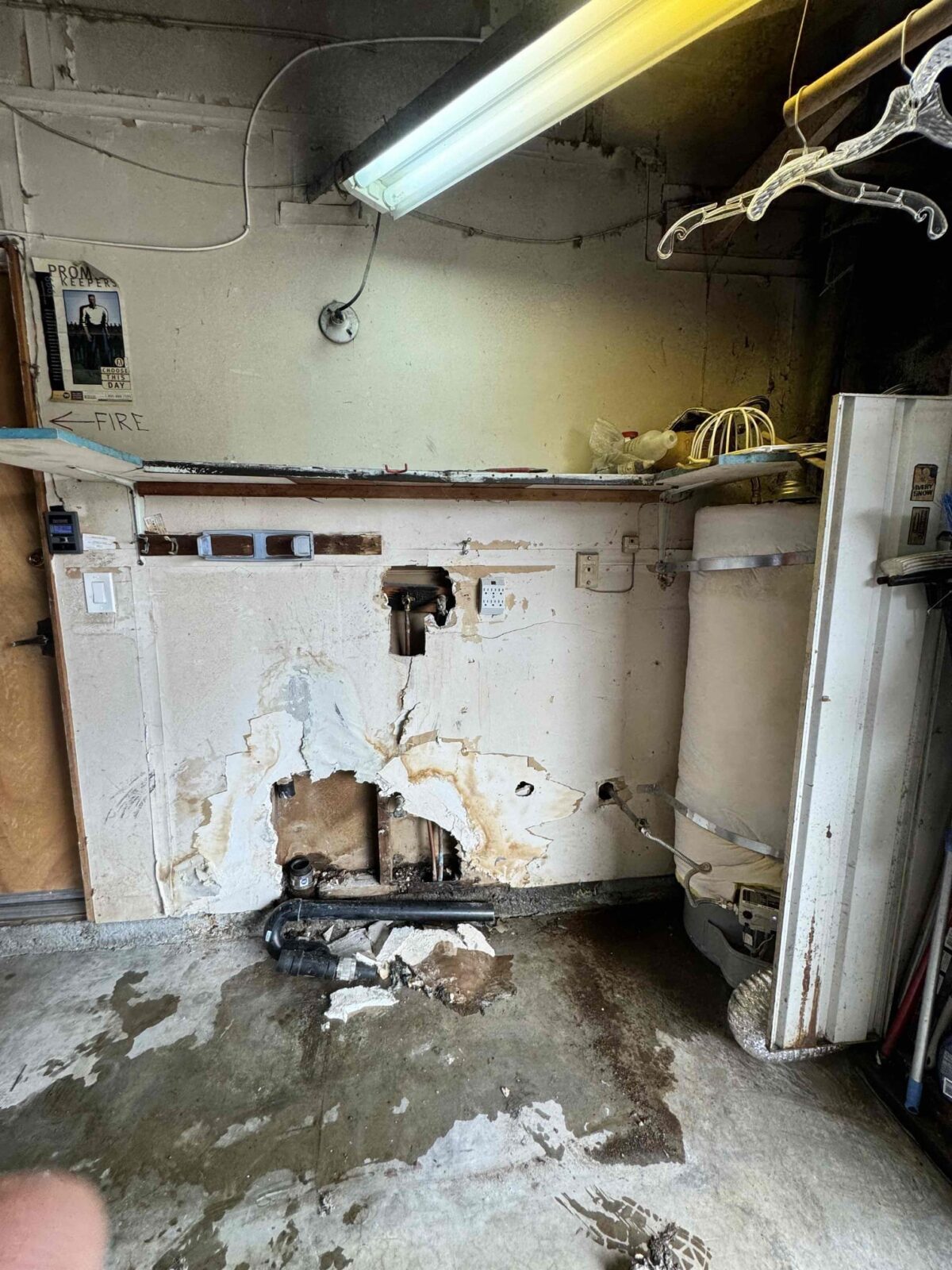

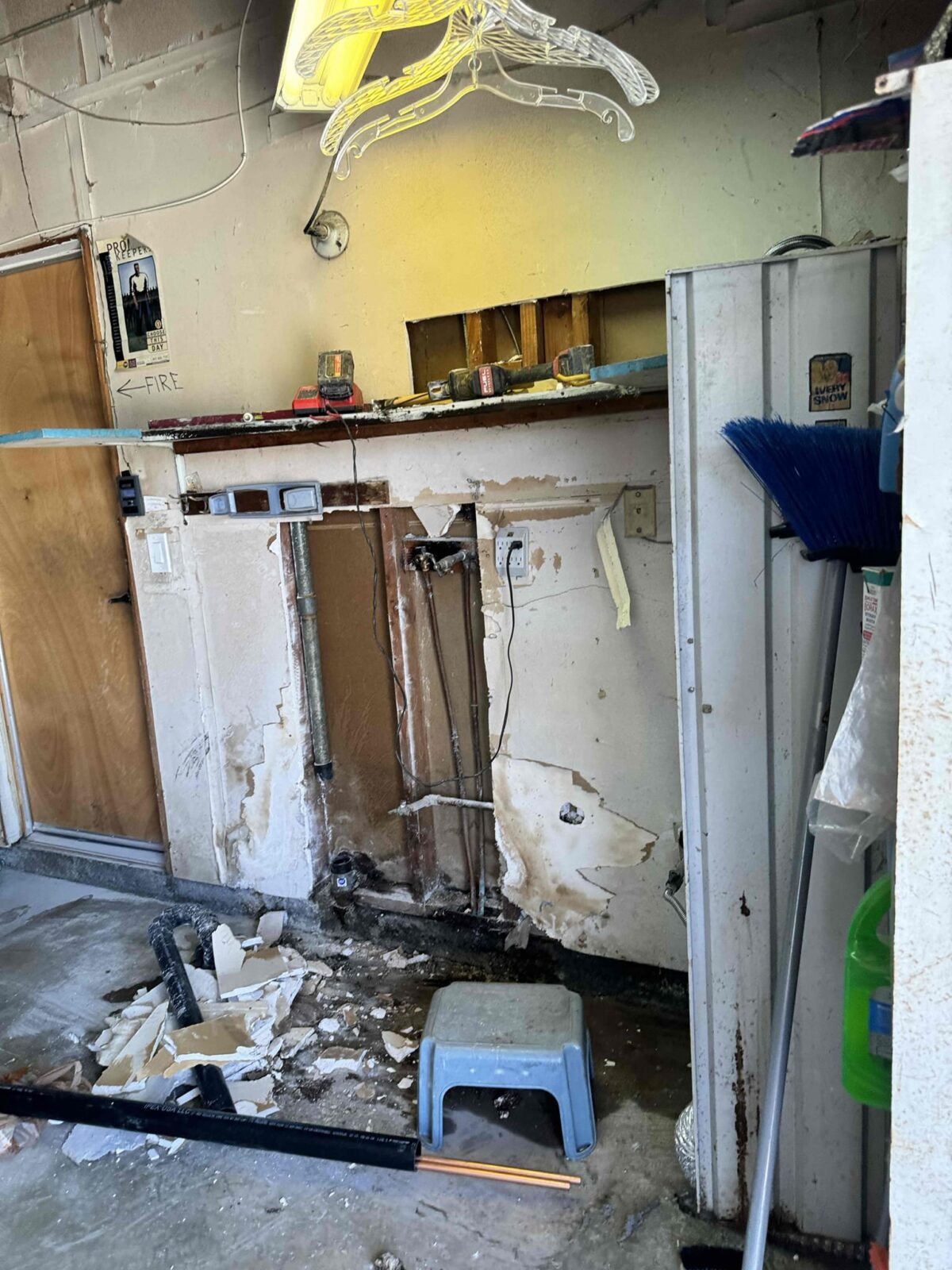

Step 2: Cutting and Exposing

Next, we cut out the drywall in the garage to expose the laundry P-trap and laundry line. This allows us to access the problematic areas that need attention.

Step 3: Removal and Capping

We then proceed to cut out the cast iron section and cap the 2” line. This step is essential to ensure no further damage occurs to the existing plumbing system.

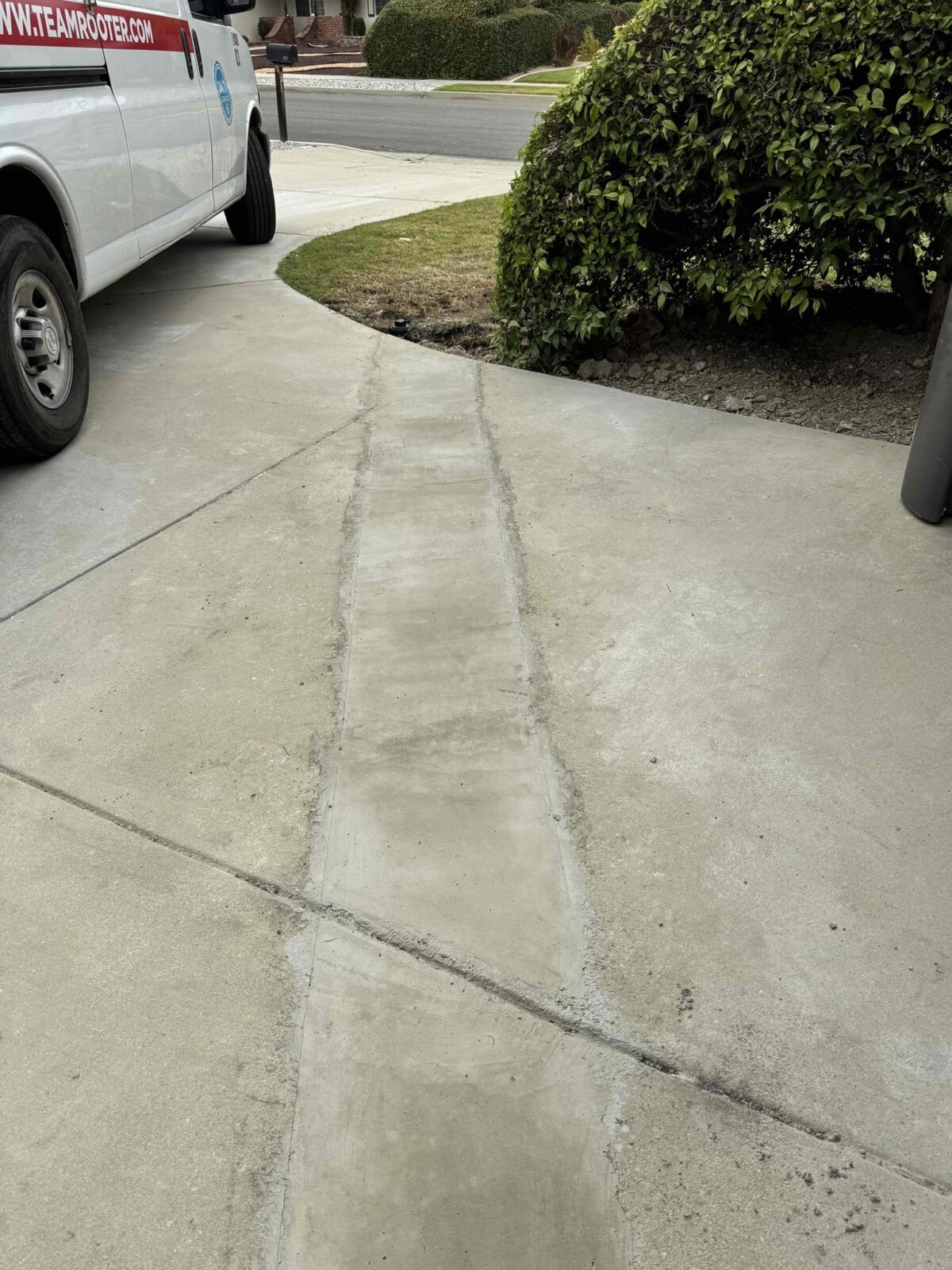

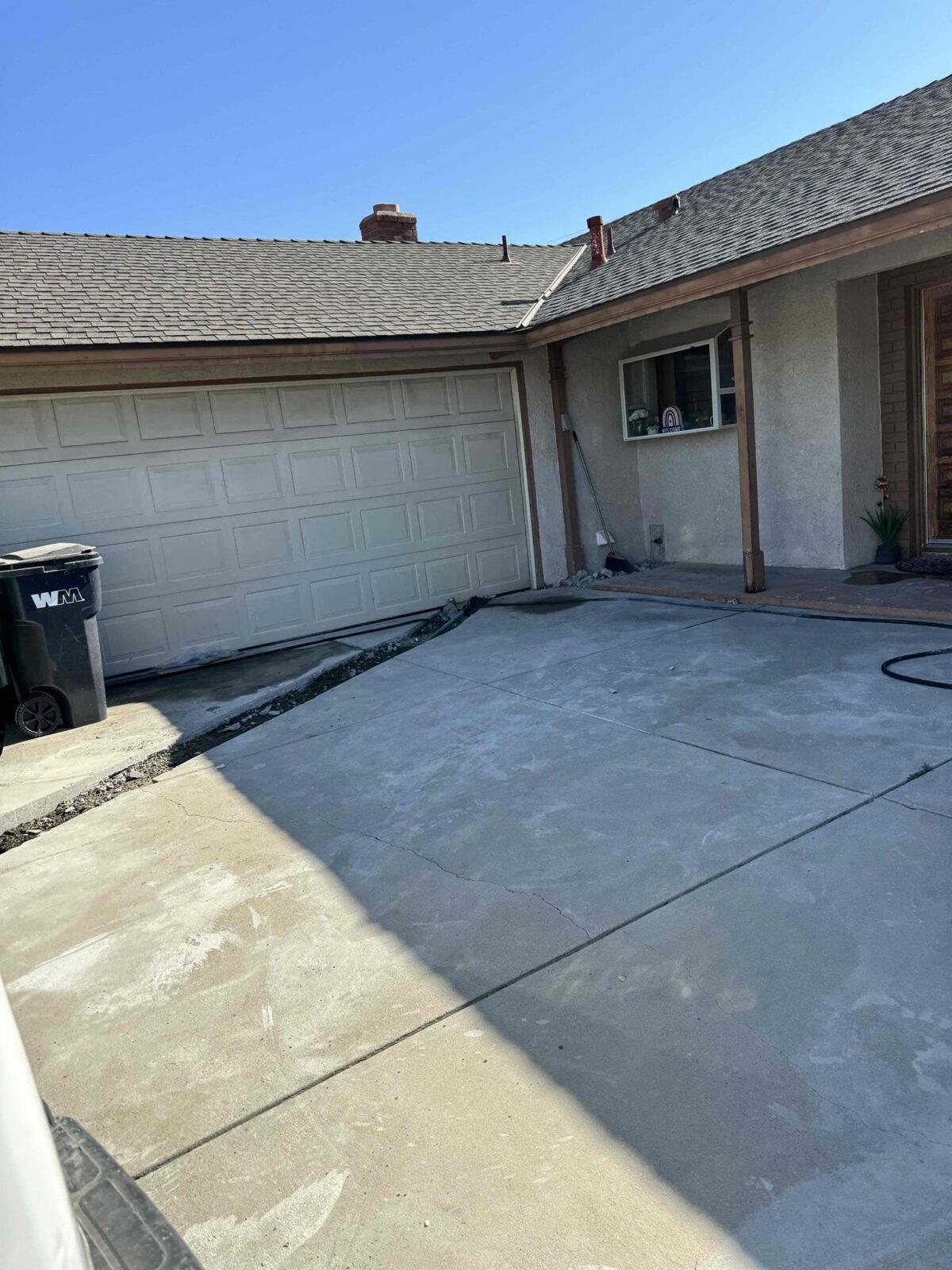

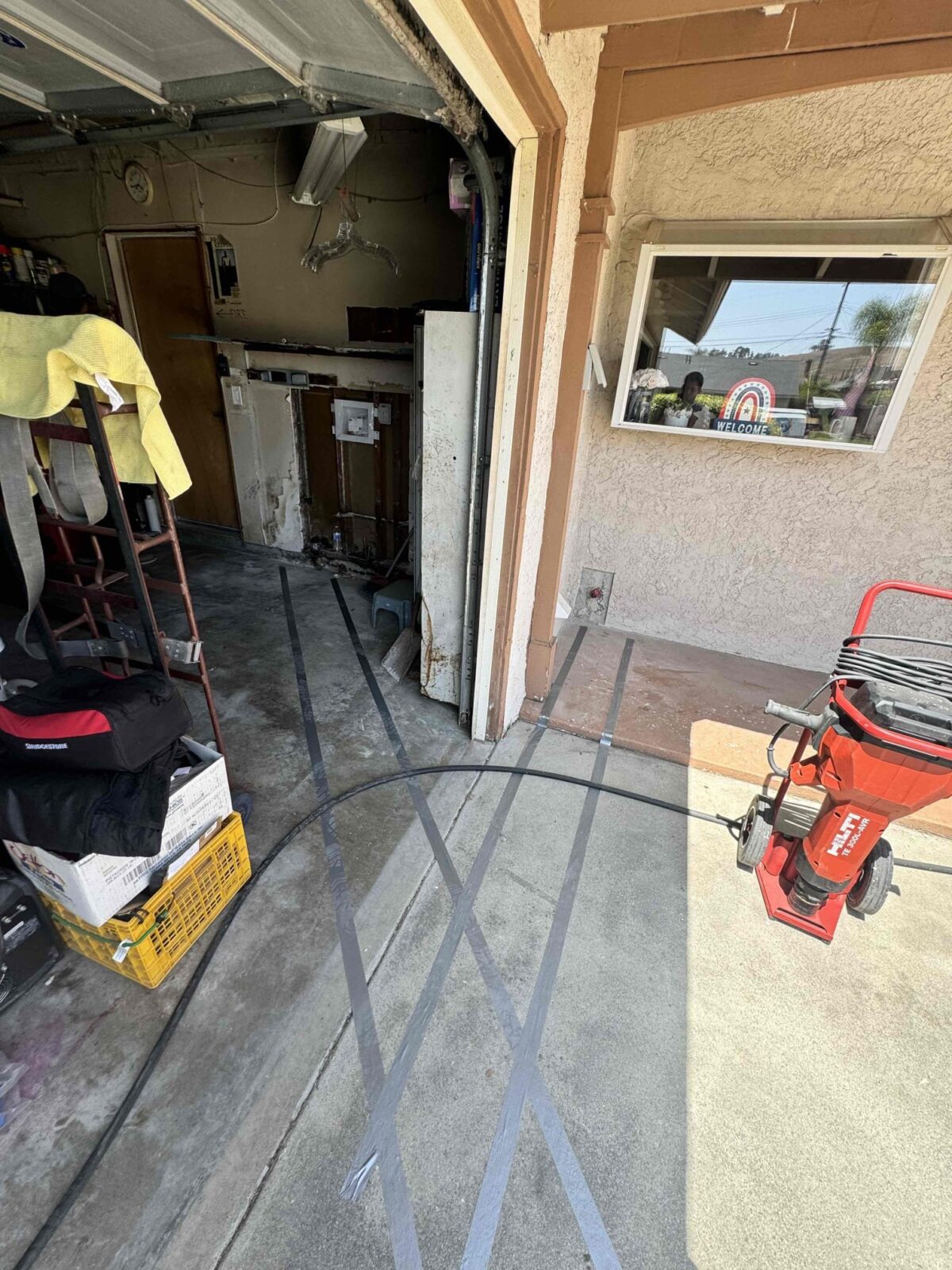

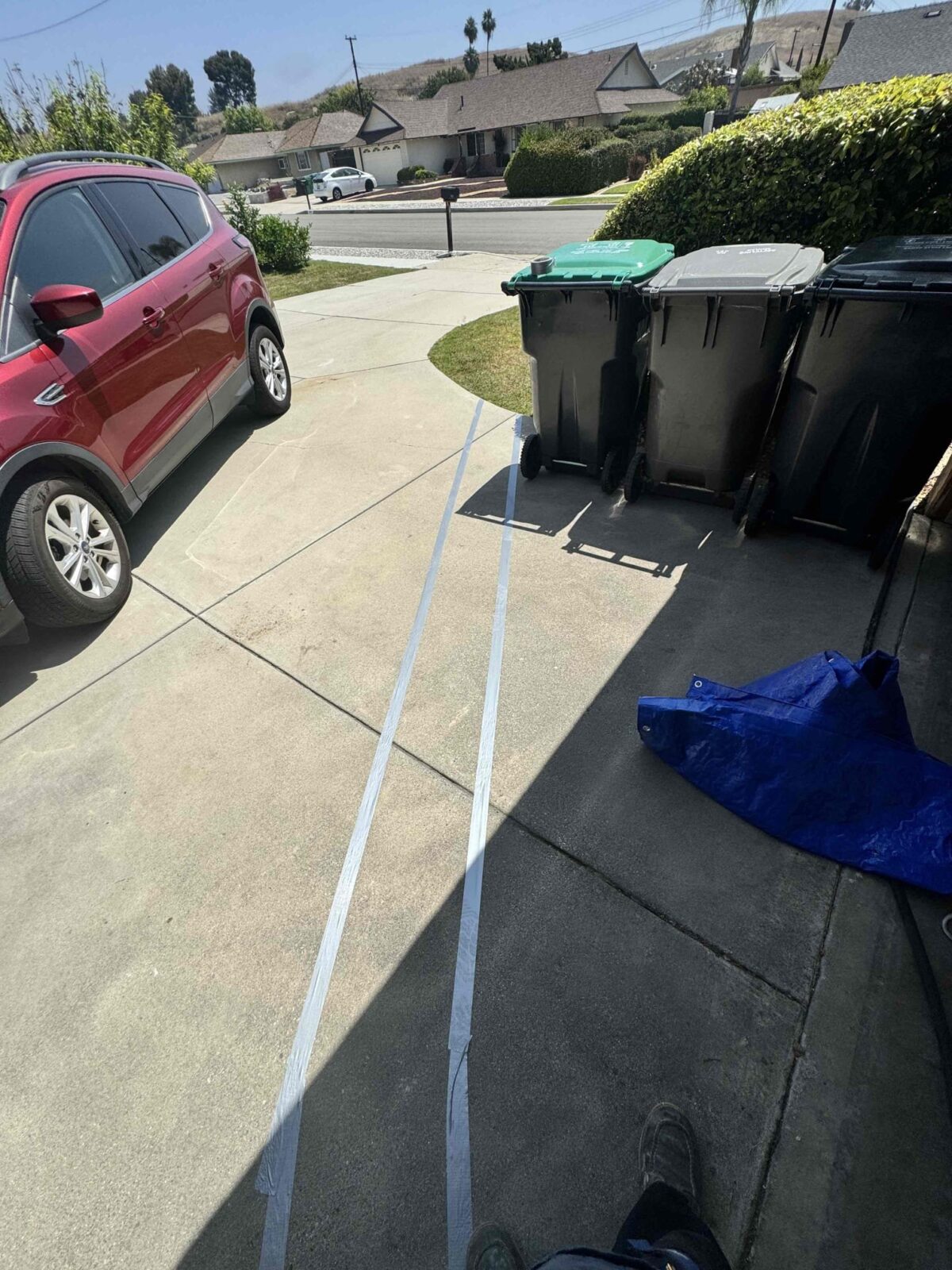

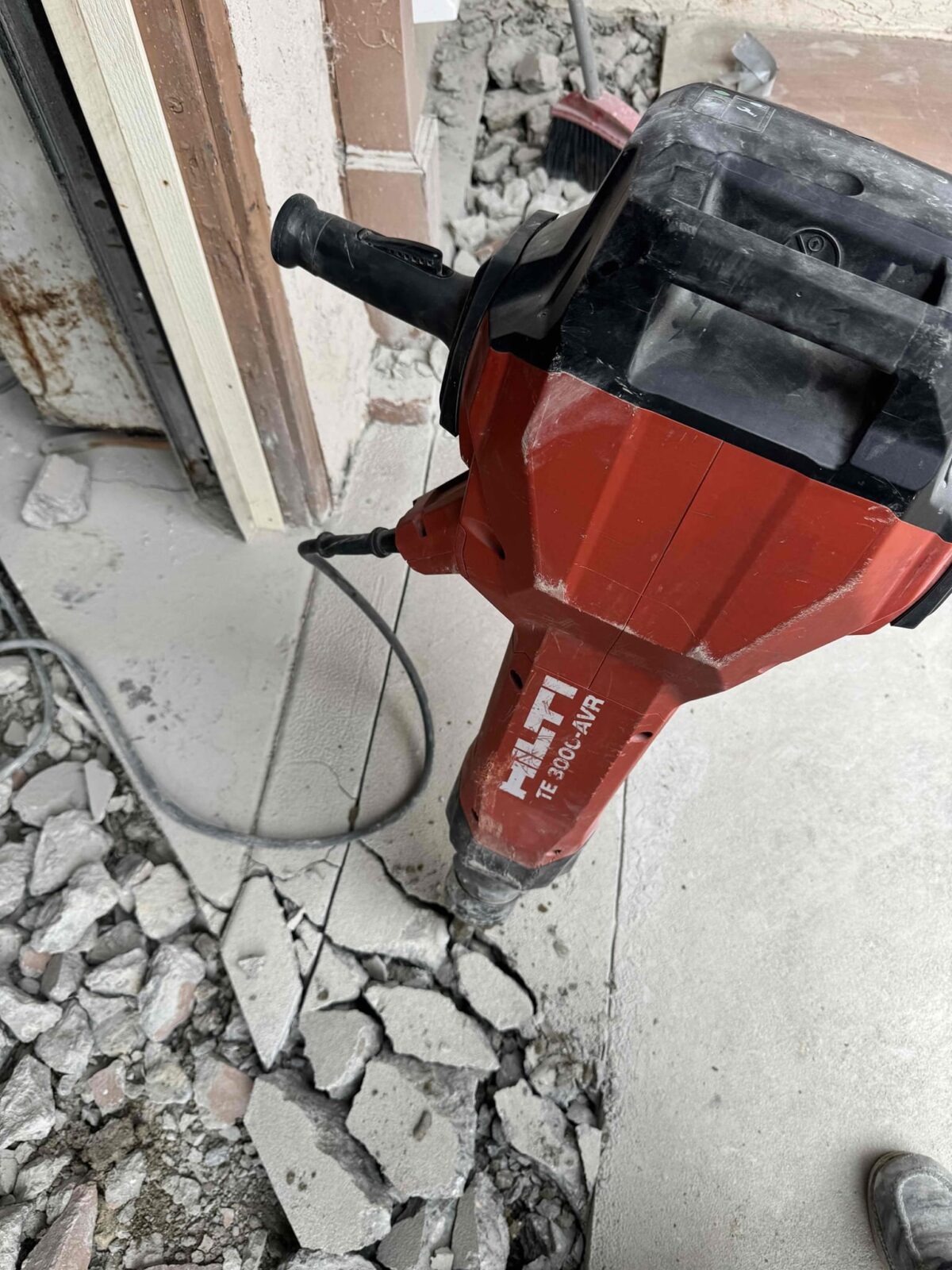

Step 4: Saw Cutting and Jackhammering

Our team will saw cut and jackhammer approximately 15 feet from the garage to the driveway. This labor-intensive process is necessary to access the underground pipes that need repair.

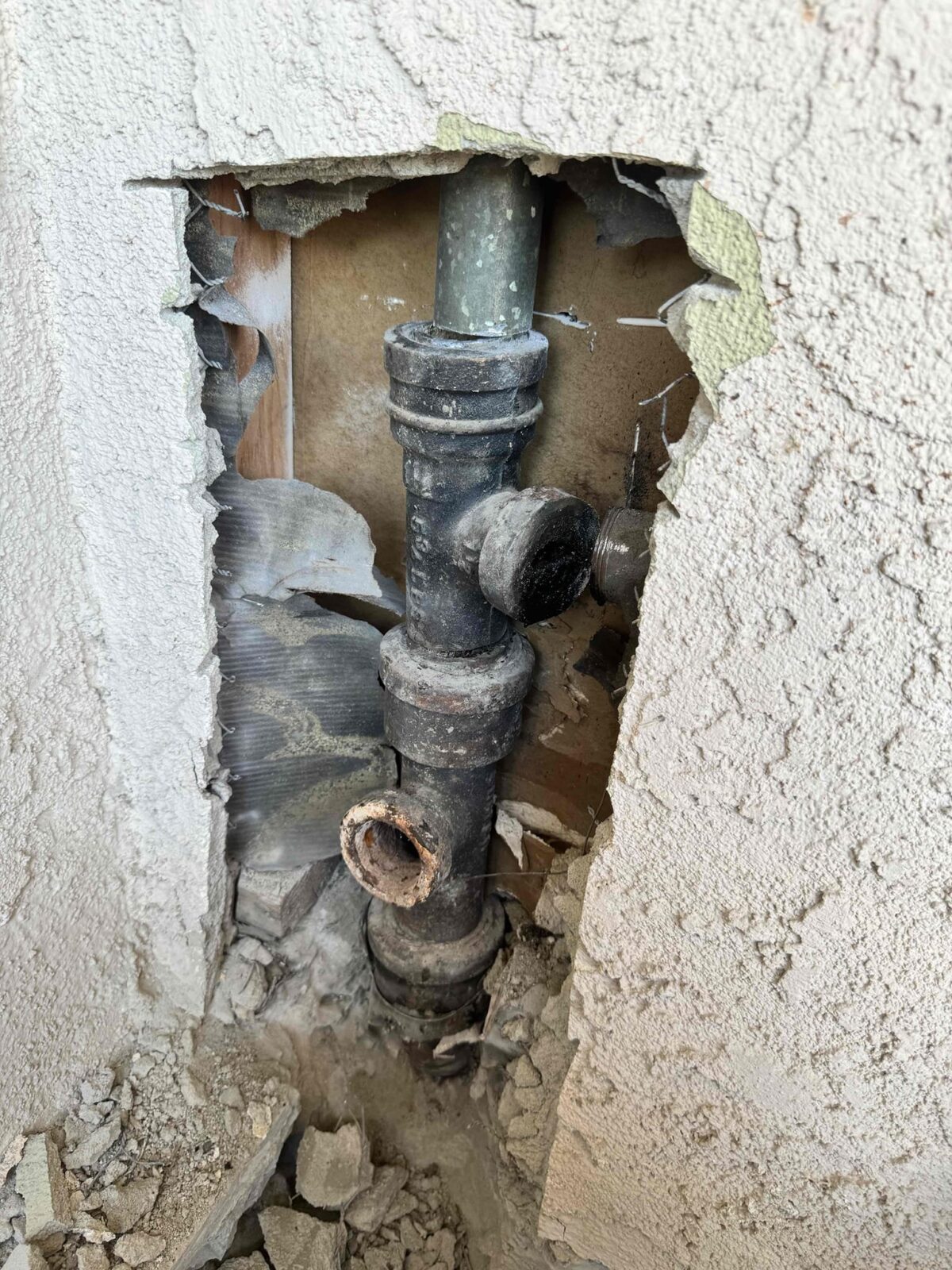

Step 5: Stucco Cutting and Exposure

To expose the kitchen line, we need to cut out the stucco. This step involves carefully removing the stucco to avoid unnecessary damage to the surrounding structure.

Step 6: Re-routing the Kitchen Line

We then reroute the kitchen line, which requires an additional 10 feet of saw cutting and jackhammering. This ensures that the new line is correctly positioned and connected.

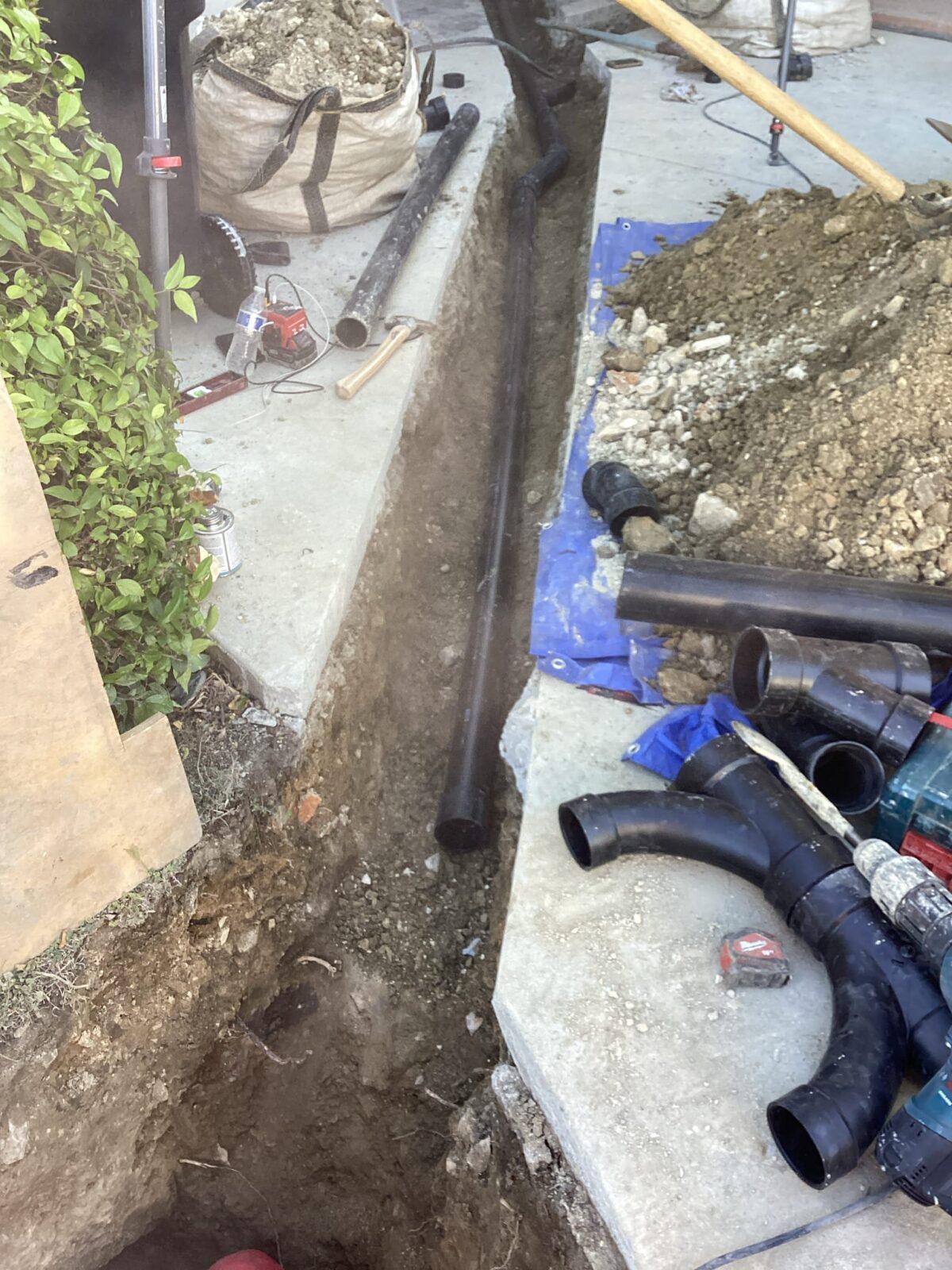

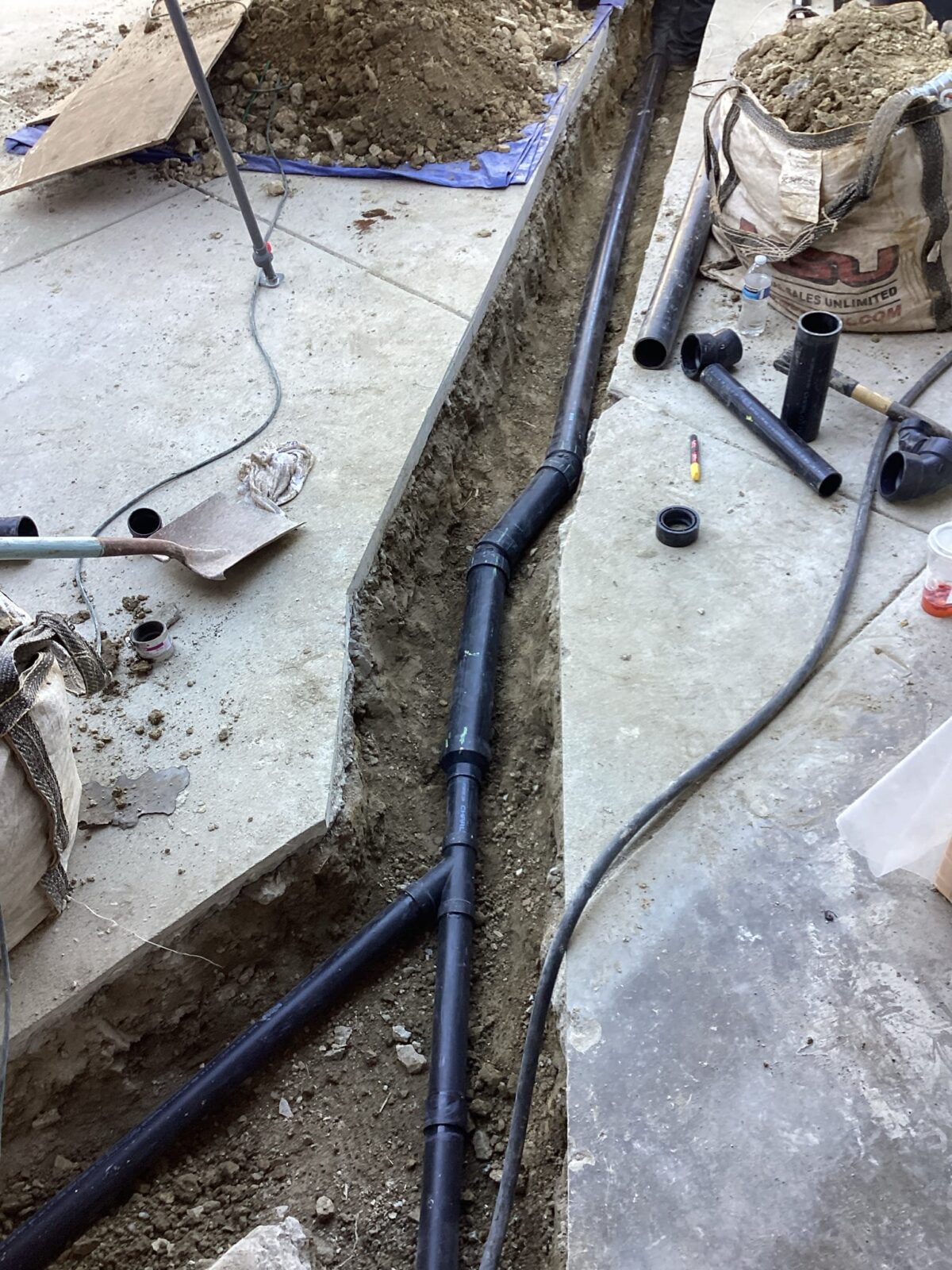

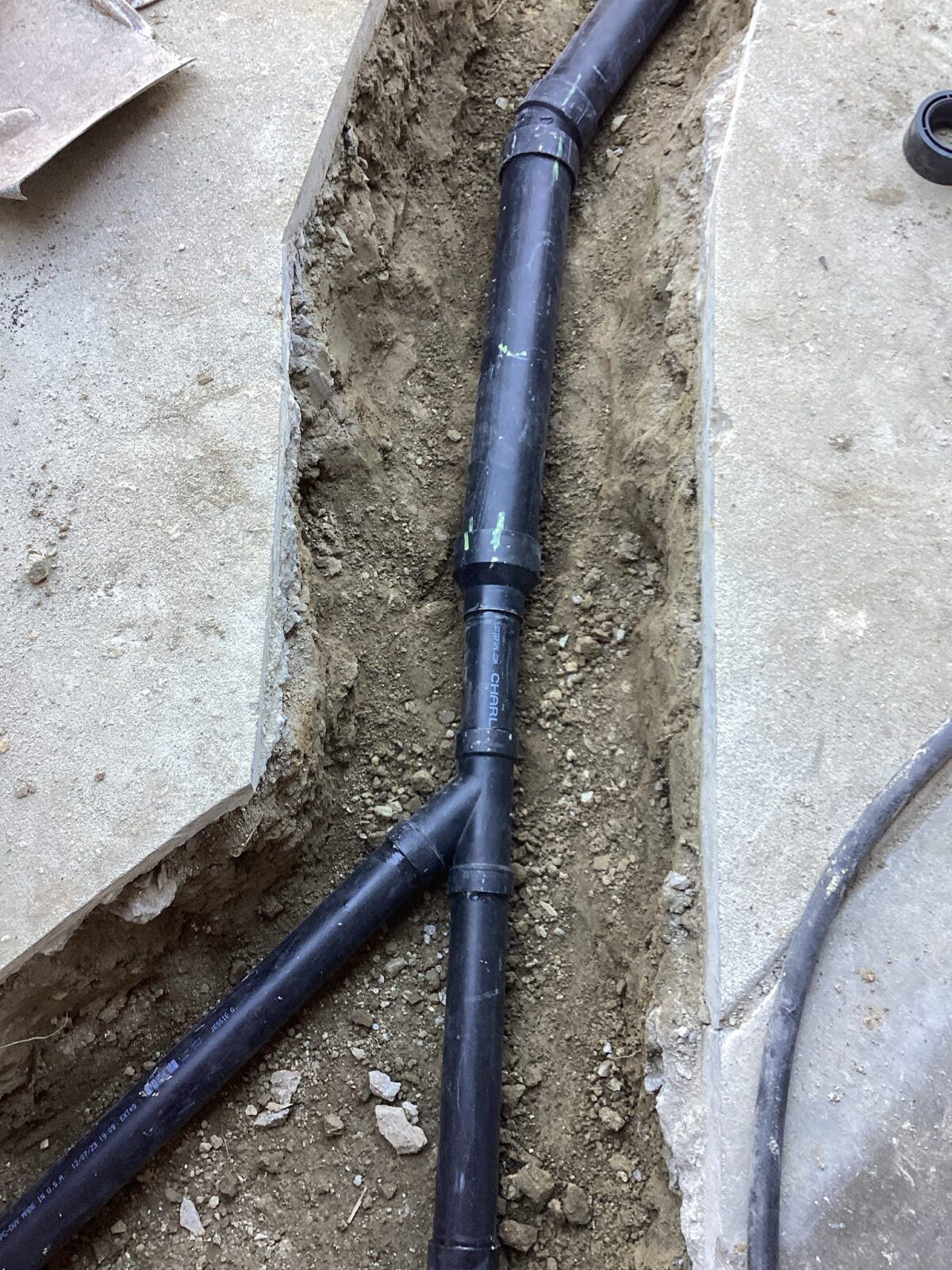

Step 7: Connecting the Lines

Once both lines are exposed, we upsize to a 3” ABS pipe and connect it to the main line. This ensures a robust and reliable connection that can handle increased water flow.

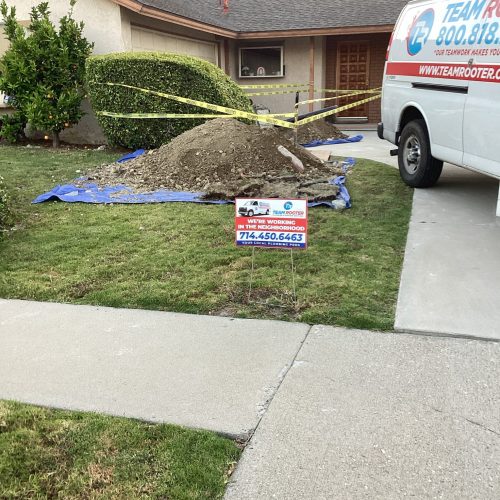

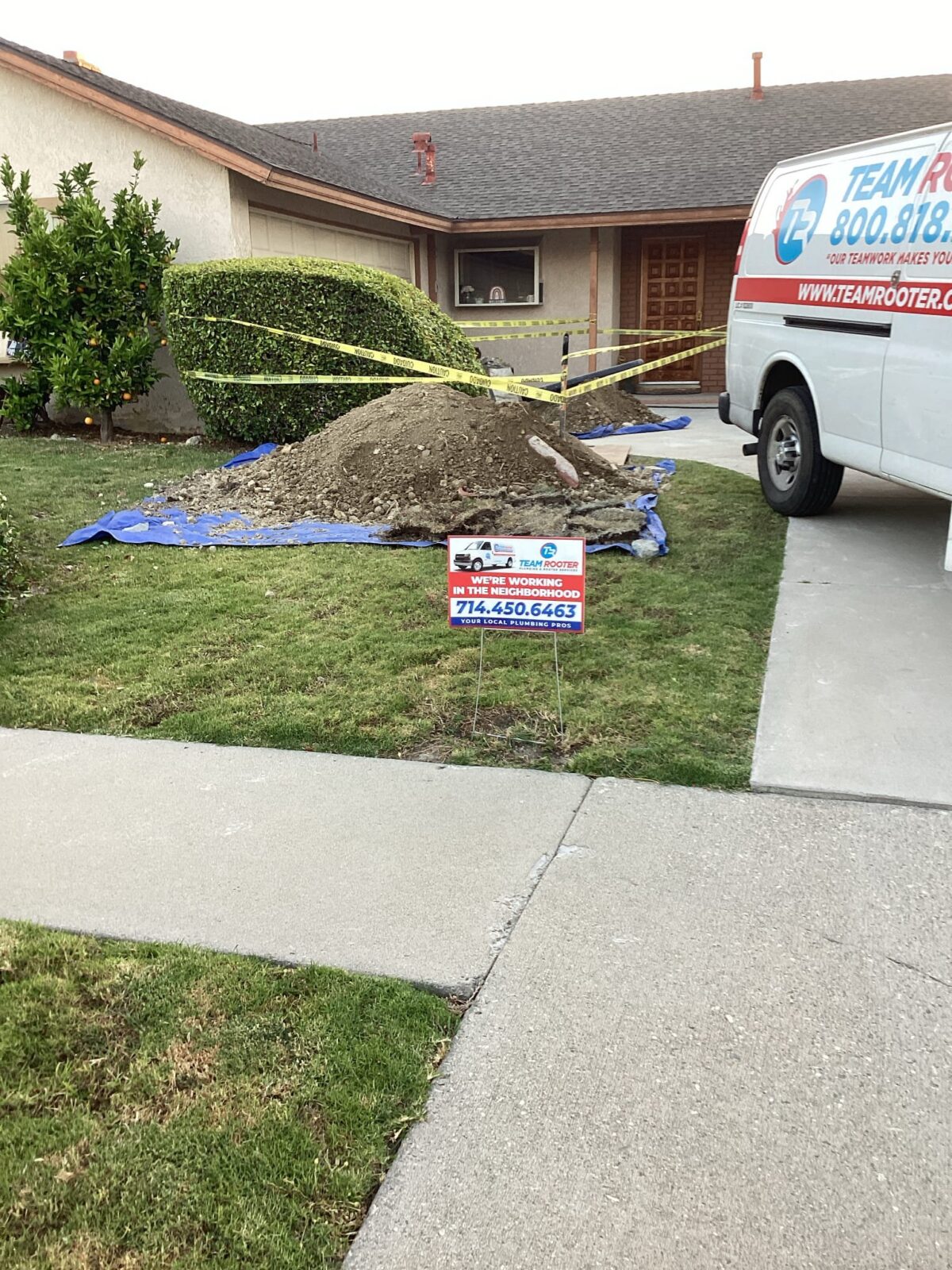

Step 8: Excavation

Excavation is another critical step in this project. We excavate a 4×4 section approximately 4 feet deep to expose the main line exiting the home. This allows us to properly access and repair the main line.

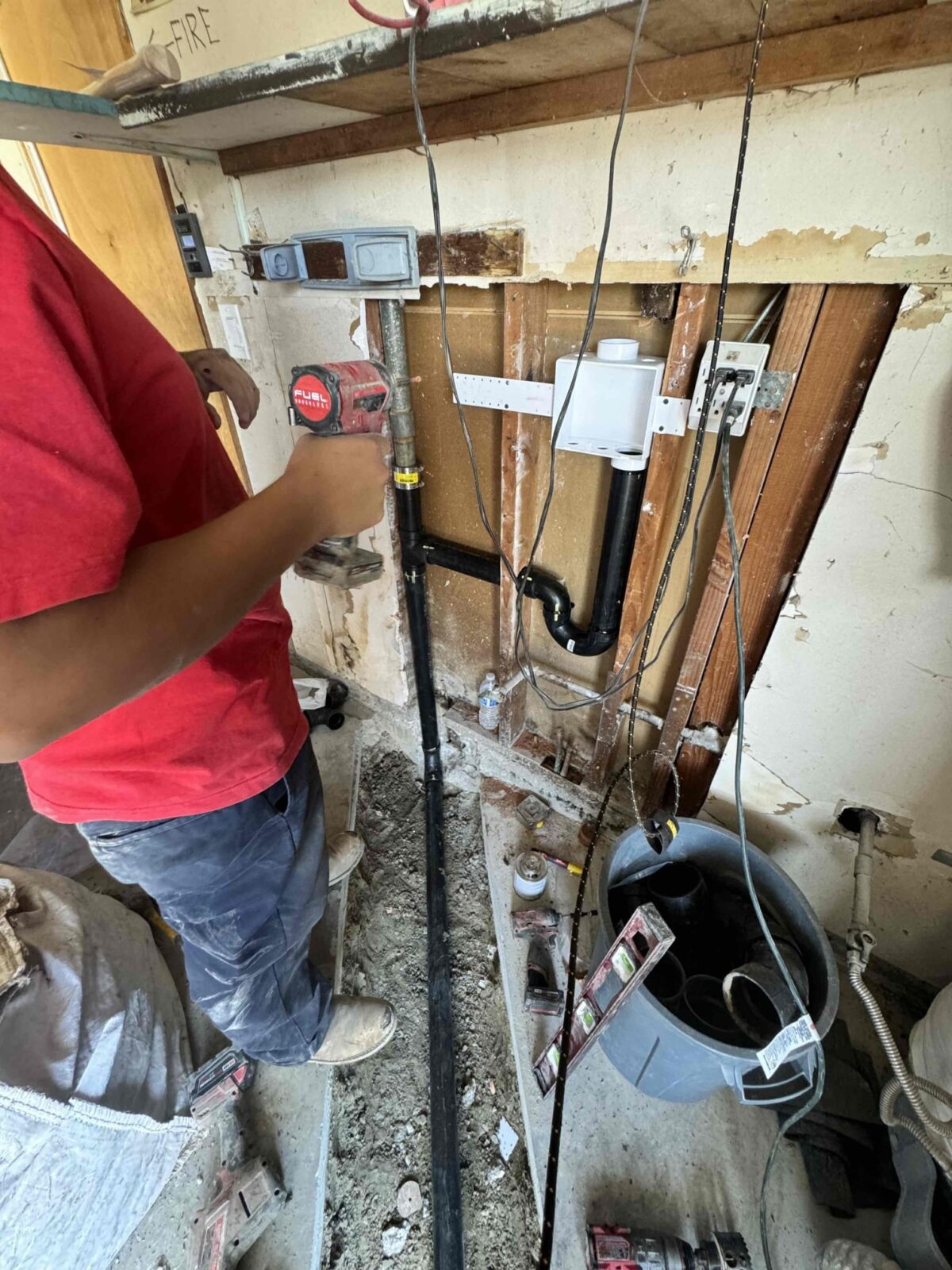

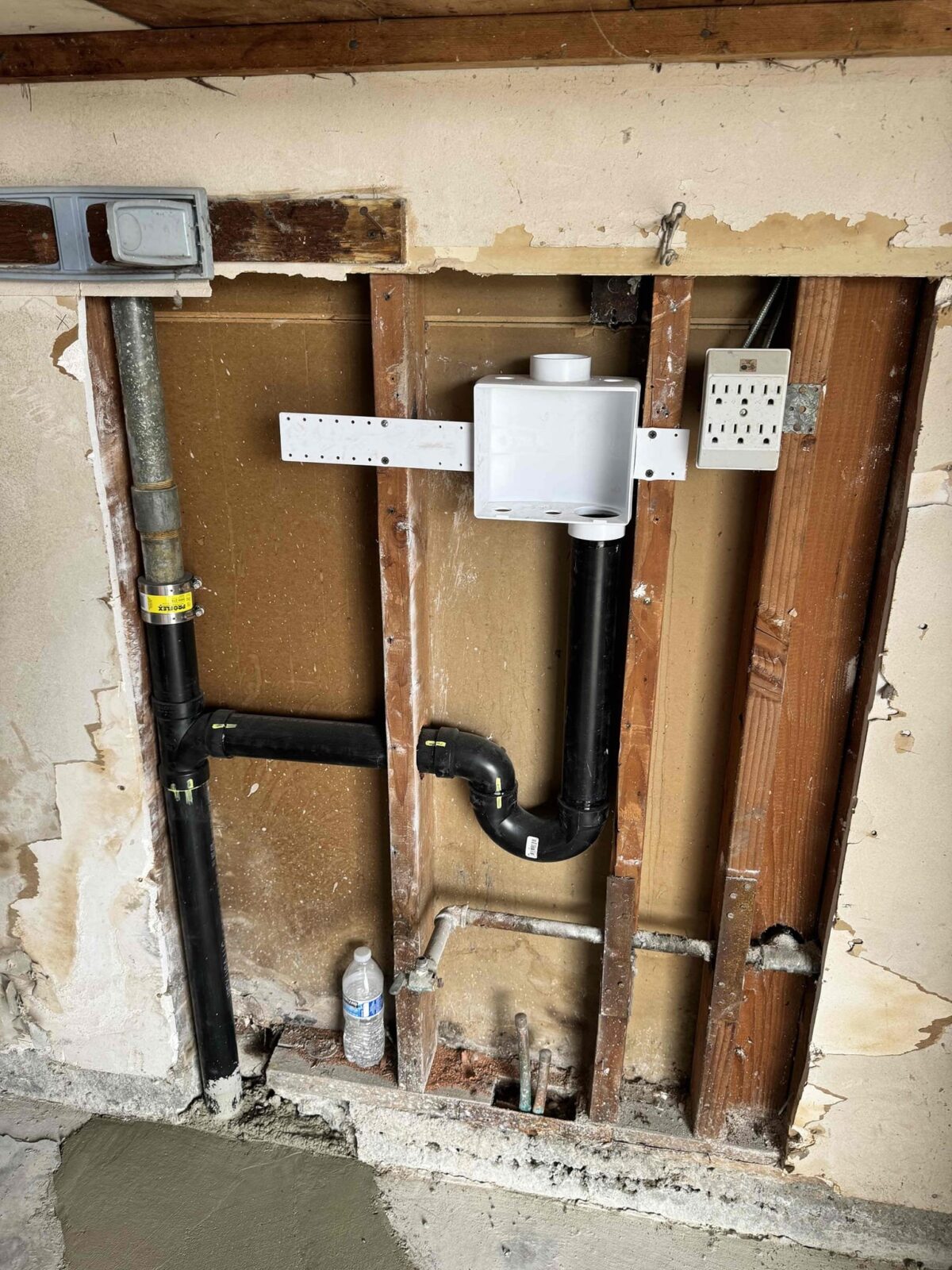

Step 9: Installation

We cut out the necessary section and install a 3×4 WYE fitting to connect the new kitchen and laundry lines to the main line. This step also includes installing a new laundry box and main line cleanouts.
